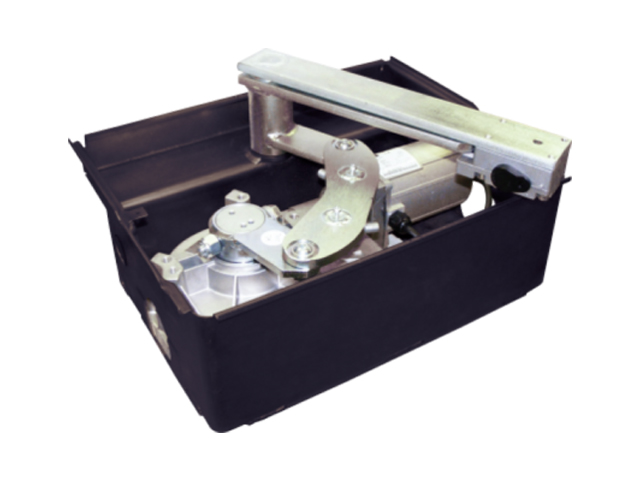

Swing Gate Operators ELI 250 N BT

In-ground irreversible electromechanical operator 24 V for swing gates weighing up to 400 kg and 3.5 m long.

Feature

ELI 250 N BT

In-ground irreversible electromechanical operator 24 V for swing gates weighing up to 400 kg and 3.5 m long.

♦ Control unit with programming display, automatic setting menu, simplified programming and virtual encoder.

♦ Adjustable mechanical stops for both opening and closing inside the foundation box

♦ Sturdy aluminium structure with high-resistance treatment.

LINK CATALOGUE

Technical data

Control unit	THALIA
Board power supply	230 V
Motor voltage	24 V
Power input	175 W
Max. width of door/gate wing	3.5 m
Max. weight of door/gate wing	400 kg
Maximum angle	120 °
Cycle time	15 s
Type of limit switch	Magnetic
Slowdown	Yes
Locking	Mechanical
Release	Lever or lever with personalised key
Impact reaction	D-Track
Frequency of use	intensive
Protection rating	IP67
Environmental conditions	-20 ÷ 50 °C
U-Link	Yes
