HDS-4P and HDS-A5 Push Button Switch Comparison: Which solution should you choose?

In the specialized automatic door segment, NABCO smart restroom devices are always highly regarded for their stable operation and intelligent support features. However, when facing the two popular models HDS-4P and HDS-A5, many consultants, contractors, and investors often wonder which solution is more suitable for their projects. Each product line has its own strengths and usage direction. So which option is right for your project? Let Sonha Auto explore the details through the article HDS-4P and HDS-A5 Push Button Switch Comparison below.

Overview of HDS-4P Push Button Switch and HDS-A5 Push Button Switch

HDS-4P: A user-friendly solution for multipurpose restrooms

HDS-4P Push Button Switch is a NABCO restroom controller designed for simplicity, intuitive use, and accessibility for all users. It is suitable for hospitals, shopping malls, airports, and public buildings.

This model features several support functions such as:

  • Large push button, easy to operate
  • Status indication lighting system
  • Operation confirmation sound
  • Embossed symbols supporting visually impaired users
  • Antibacterial coating ensuring hygiene

In addition, HDS-4P also supports multilingual audio in English, Japanese, Chinese, and Korean, making it suitable for projects frequently used by international visitors.

Bộ điều khiển cửa nhà vệ sinh NABCO HDS-4P với thiết kế trực quan cho nhà vệ sinh đa năng
NABCO HDS-4P Push Button Switch with an intuitive design for multipurpose restrooms

HDS-A5: Enhanced safety support solution

Compared to HDS-4P Push Button Switch, NABCO HDS-A5 Push Button Switch is developed in a more modern direction with additional control and safety assurance features during operation.

In addition to the basic functions of an automatic restroom switch, HDS-A5 also integrates several intelligent support features such as:

  • LED status display system
  • Voice guidance and embossed symbols
  • Warning alerts when the user stays inside beyond the preset time
  • Emergency door opening support from outside
  • Multilingual interface with Vietnamese support

Thanks to this, HDS-A5 is especially suitable for facilities requiring high safety support such as hospitals, healthcare facilities, or high-traffic public areas.

Bộ điều khiển cửa nhà vệ sinh thông minh HDS-A5 hỗ trợ an toàn tối ưu
NABCO HDS-A5 Push Button Switch with optimized safety support

HDS-4P and HDS-A5 Push Button Switch Comparison in detail

Basically, both models are high-end NABCO accessories acting as dedicated NABCO restroom door controllers for automatic sliding door systems. They completely replace traditional mechanical lock systems, allowing users (especially elderly and disabled people) to open, close, and lock the door with a simple press.

However, in the HDS-4P and HDS-A5 Push Button Switch Comparison, it can be seen that each model is developed to solve different operational challenges in building applications. For clearer evaluation, we will analyze based on technical criteria and core features.

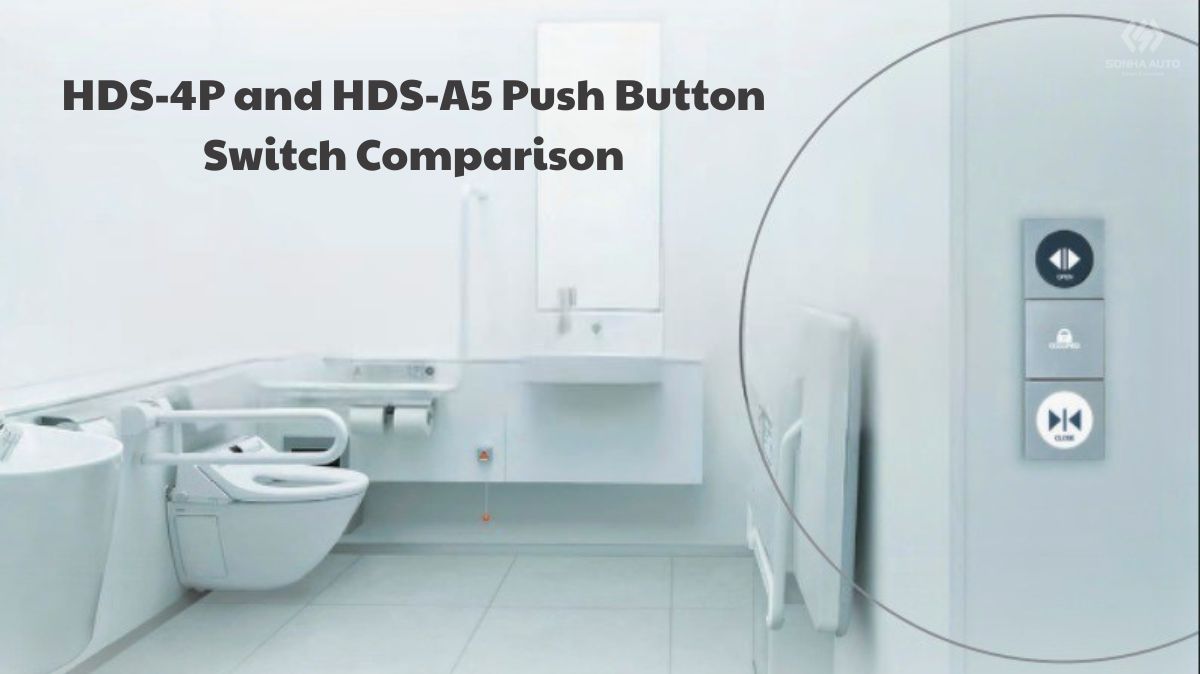

HDS-4P and HDS-A5 Push Button Switch Comparison
HDS-4P and HDS-A5 Push Button Switch Comparison for modern buildings

Room status display mechanism

Both HDS-4P Push Button Switch and NABCO HDS-A5 Push Button Switch are developed based on NABCO’s universal design philosophy, aiming for intuitive usability for all user groups.

Both models use LED indicator systems combined with audio guidance, helping users operate step by step easily. During use, the next function button automatically lights up to support fast recognition and reduce operation errors.

In addition, both models use black-and-white push buttons with high contrast, supporting users with red-green color vision deficiency. Restroom status is also clearly indicated through intuitive symbols on the switch.

However, in the HDS-4P and HDS-A5 Push Button Switch Comparison, HDS-A5 shows superior visual performance thanks to its dual-color LED system and Vietnamese language interface, making operation more convenient in Vietnam-based projects.

Accessibility support and visual impairment assistance

One of the key advantages of NABCO smart restroom devices is their support for visually impaired users, elderly people, and wheelchair users.

Both HDS-4P Push Button Switch and NABCO HDS-A5 Push Button Switch are designed with:

  • 70 mm large push button
  • Light pressing force of approximately 5 ~ 6N
  • Raised tactile surface for easy recognition
  • Audio confirmation system
  • Multilingual voice guidance

Thanks to these features, users can operate the system easily even with visual or mobility limitations.

In addition, when comparing accessibility in the HDS-4P and HDS-A5 Push Button Switch Comparison, HDS-A5 is further improved in display layout and status recognition, making operation more intuitive and convenient.

NABCO HDS-4P Push Button Switch user-friendly and easy to use

Time control and emergency handling scenarios

The biggest difference in the HDS-4P and HDS-A5 Push Button Switch Comparison lies in safety support and emergency handling capability.

HDS-4P focuses on a user-friendly, stable, and easy-to-operate experience for multipurpose restrooms in public facilities.

Meanwhile, HDS-A5 integrates additional advanced safety features such as:

  • Flashing light warning when the user exceeds preset time
  • Connection to emergency call switch
  • External emergency door opening via mechanical key when necessary

Therefore, HDS-A5 multipurpose restroom switch is especially suitable for facilities requiring high user safety support such as hospitals, healthcare facilities, airports, or high-traffic shopping malls. This is also a key difference in the HDS-4P and HDS-A5 Push Button Switch Comparison for safety-critical applications.

HDS-A5 restroom switch integrated with emergency warning function

Quick technical specification table

Criteria NABCO HDS-4P Push Button Switch NABCO HDS-A5 Push Button Switch
Button diameter 70 mm 70 mm
Pressing force Approx. 5N Approx. 6.5N
LED indicator White LED White LED
Status display Stand-by: Off / Occupied: On Stand-by: Off / Occupied: On
Audio guidance Yes Yes
Built-in speaker Yes Yes
Multilingual support English, Japanese, Chinese, Korean English, Japanese, Chinese, Korean, Vietnamese
Visually impaired support Yes Yes
Installation Flush / surface mount optional Flush / surface mount optional
Dimensions W100 × H300 × D13 W100 × H300 × D13
Material ABS resin ABS resin
Over-time warning No Yes
Emergency call connection No Yes
Emergency call connection Basic Emergency mechanical key support
Suitable for Multipurpose restrooms High safety requirement facilities

Should you choose HDS-4P or HDS-A5 Push Button Switch?

If the project requires a user-friendly restroom function switch that is easy to operate and cost-effective, HDS-4P Push Button Switch is a suitable choice for public areas or multipurpose restrooms.

Meanwhile, if priority is given to safety support, occupancy control, and enhanced user experience—especially in hospitals or healthcare facilities—NABCO HDS-A5 Push Button Switch is the more optimal solution. It is also one of the most preferred hospital restroom switch solutions today.

Regardless of choosing HDS-4P or HDS-A5 Push Button Switch, both are high-quality NABCO accessories developed according to Japanese technology standards, offering stable operation, high durability, and suitability for modern buildings requiring safety and optimized user experience.

Cửa trượt tự động NABCO tích hợp bộ điều khiển HDS-4P tại Nhà ga T3 Sân bay Tân Sơn Nhất
NABCO automatic sliding door integrated with HDS-4P Push Button Switch at Tan Son Nhat Airport Terminal T3

Sonha Auto supplies genuine NABCO restroom door controllers

Sonha Auto is currently an official supplier of NABCO restroom door controllers such as HDS-4P Push Button Switch, NABCO HDS-A5 Push Button Switch, along with automatic door systems and NABCO accessories for modern projects.

With over 20 years of experience in automatic doors, Sonha Auto commits to:

  • 100% genuine products
  • Project-specific solution consulting
  • Professional installation and maintenance support
  • Available spare parts supply

If you are looking for a suitable automatic restroom switch solution, Sonha Auto is a reliable partner to deliver the most effective and optimized implementation.
