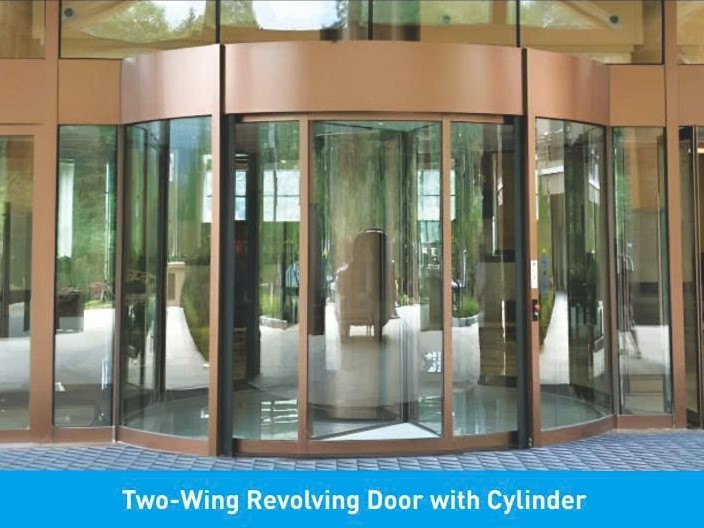

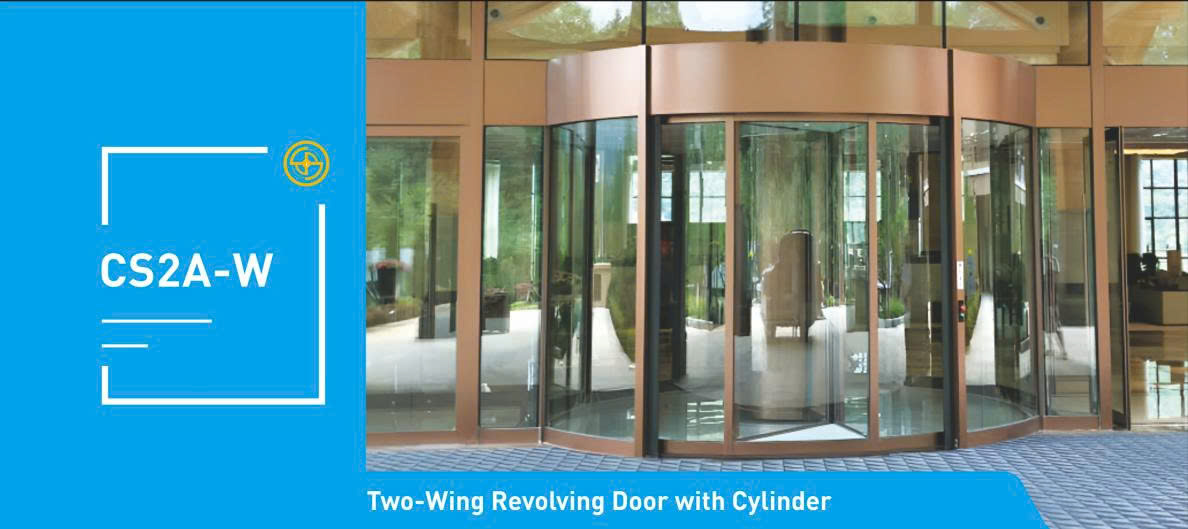

The CS2A-W is designed with columns around the door, providing an expanded clear opening width (up to 2224 mm) and optimized passage for high-traffic environments.
The CS2A series is the star of the two-wing revolving door, which is very safe and convenient.
1) Reinforced aluminum frame with high strength and stability.
2) Energy-saving, with low noise, balanced operation, high safety, and a long service life (design service life: 20 years).
3) Equipped with an imported digital program control system for reliable operation.
4) Multi-security functions include anti-clash, anti-collision, and anti-pinch mechanisms.
5) Two operation modes (auto revolving and auto sliding) are selectable.
6) In the event of a power failure or emergency, the door in the fire passage can open automatically, allowing for immediate evacuation.
| Product Name | CS2A-W |
| Clear Opening Width DW (mm) | 1624~2224 |
| Power Supply | AC220V-16A |
| Diameter (mm) | 3600~4800 |
| Passage Height (mm) | 2200~3000 |
| Canopy Height (mm) | 550~600 |
| Revolving Speed | Standard revolving speed: 3rpm (3–4rpm) Low revolving speed: 2rpm (2–3rpm) |
| Revolving Direction | Anti-clockwise |
| Safety Protection Device | Door body sensor: Position anti-pinch sensor Auxiliary sensor: Emergency stop device Revolving stop device: Low-speed revolving switch Rubber anti-pinch sensor: Sliding door switch (label and doorbell purchased separately) |
| Maximum Bearable Wind Speed (H=2200mm) | When the revolving door is in service: <25m/s When the sliding door is in service: <15m/s |
